铝挤压辅机-26*6m 冷床

冷床(常用尺寸是26*6M,也可根据客户需求定制),将铝挤压机中挤压出来的铝型材,通过牵引机和拉直机进行调直保证型材平整无弯曲,传送到冷床进行冷却,最后通过成品锯切到固定长度。
  • 品牌:

    Teyun
  • 质保期:

    1 year
  • 认证:

    CE
  • 操作方式:

    Automatic
  • 电压:

    Customized
  • 运用:

    straightening and cutting of the aluminum profiles

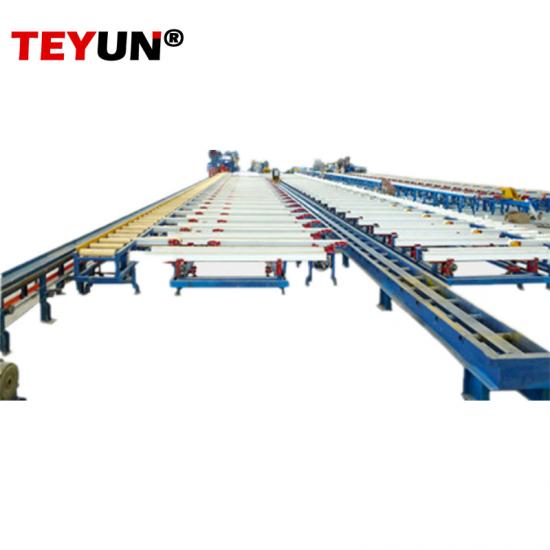

26*6m 冷床

产品简介:

The automatic aluminum extrusion cooling table (26*6m) is one part of the aluminum extrusion line which is  mainly used for cooling and conveying the aluminum profile which realizes the straightening and cutting of the aluminum material through the cooperation of the tractor, the straightening machine, the interrupting saw and so on



冷床主要有以下几部分构成:

1.初出台、冷却装置



  • 初出台配高温毛毡滚筒
  • 可调式升降台,根据不同型材调节高度。
  • 夹紧器2套
  • 冷却系统为上下风冷却。



2.滑出台

  • 滑出台由液压升降装置组成
  • 升降装置为液压驱动式,滚道台垂直升降。
  • 升降高度50mm
3.取料台
  • 移料台是把材料从滑出台移到冷却台的装置
  • 传动轴:φ35
  • 铝梁彩色喷涂
  • 不需拆装任何部件直接更换毛毡



4.Cooling Bed

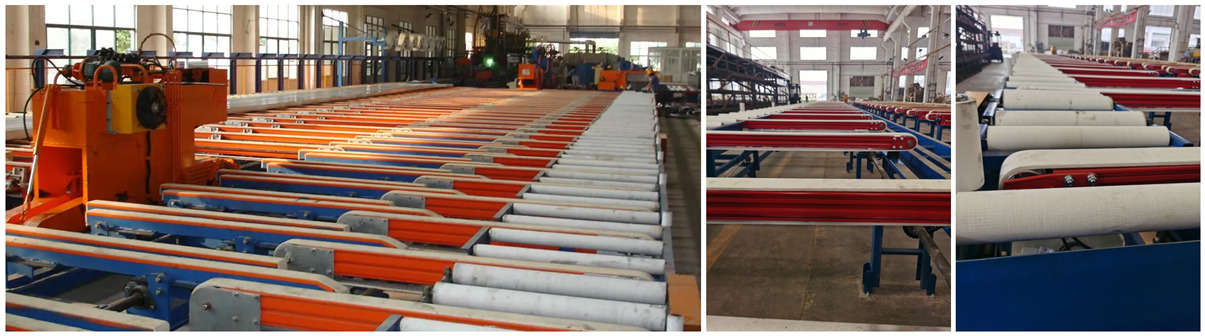

The cooling bed is mainly responsible for the cooling of the profile. The conveyor belt is driven by a chain, and the chain is a double-row chain.It can automatically adjust the discharging distance and the profile is moved by a belt-type aluminum alloy feeding mechanism.





5.Straightening Table

The straightening machine adopts cross-stretched belt-type aluminum alloy feeding material across the bridge, equipped with a gear transmission mechanism. Its discharge spacing can be adjusted and the belt can be controlled in forward and reverse rotation.



6.Straightening Machine

The straightening machine is mainly used to stretch the aluminum profile to make it straight and obtain good straightness.The straightening machine is divided into fixed front jaws and moving rear jaws. The track base is made of steel plate and section steel welded structure. There is a steel guide rail above the base, which can withstand the force generated when it is stretched.The two straightening heads are each equipped with a hydraulic station.




  • Sloping with hydraulic lifting, driving high -temperature drums with a chain.
  • Slide the platform to adopt a high temperature drum to reduce the wear of the roller due to high temperature.
  •  Use belt -type temperature -resistant felt to reduce the wear of aluminum materials.
  • The aluminum profile is shifted and transported to keep the appropriate distance between aluminum profiles.

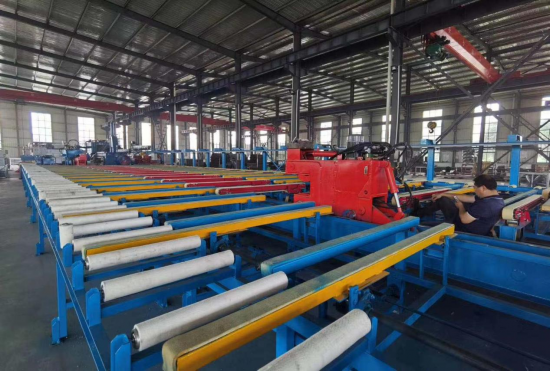

aluminum cooling table

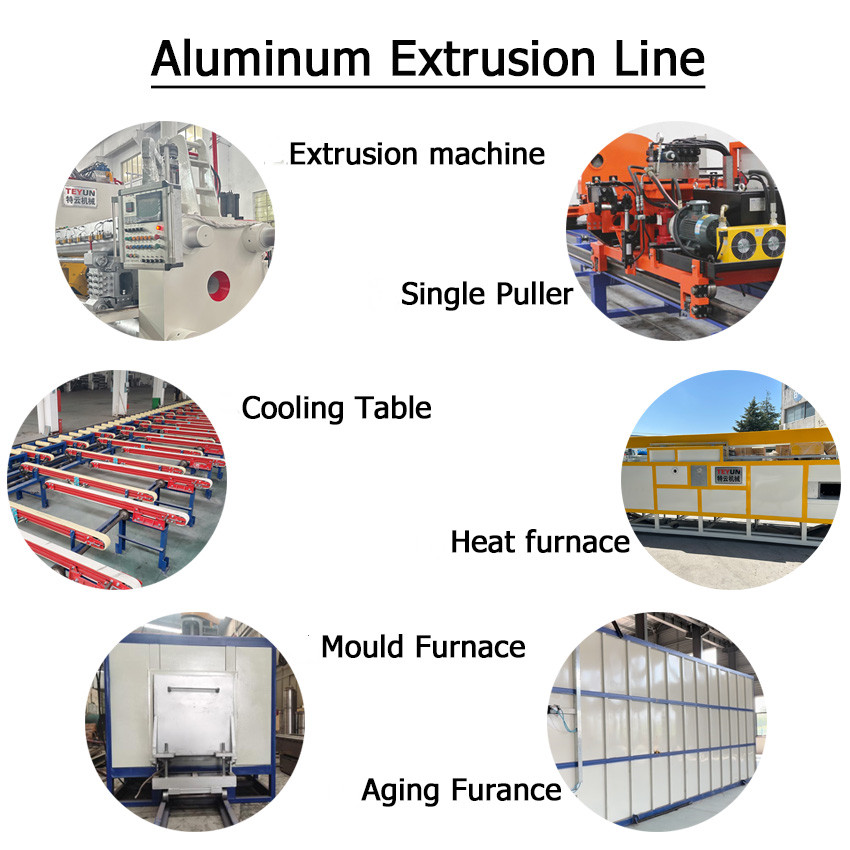

The whole line of the aluminum extrusion line consists of the aluminum extrusion main press, the puller, the automatic cooling table, the heating furance, the mold oven, the aging furance.

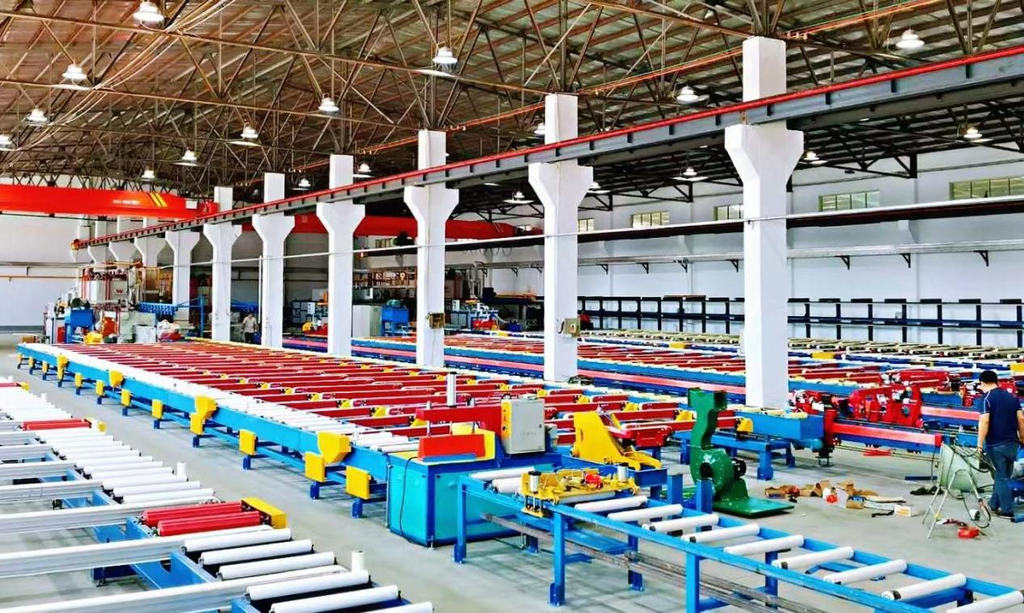

aluminum extrusion line

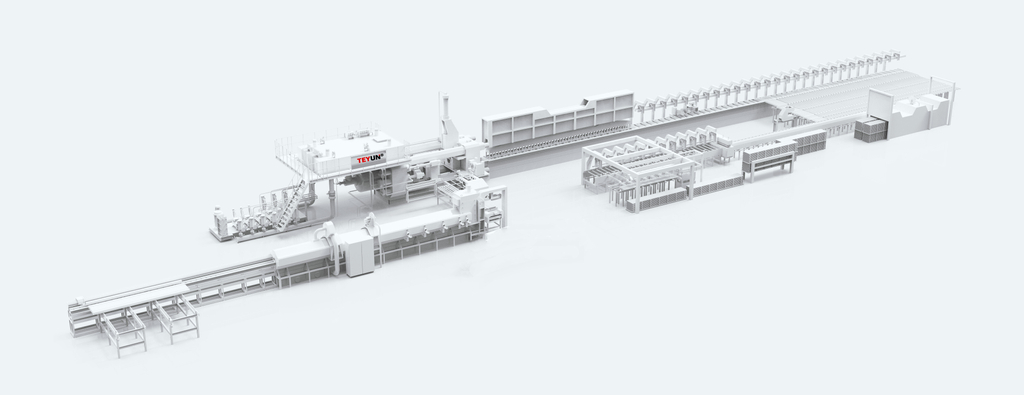

aluminum extrusion line
